Our Products
AIR MAX 18
| AIR FLOW | 18000 CMH |
| KW / HP | 1.1/1.5 |
| MACHINE SIZE | 1.08*1.08*0.95 |
| VENT OPENING | 660MM*660MM |
| DISCHARGE | TOP / DOWN |

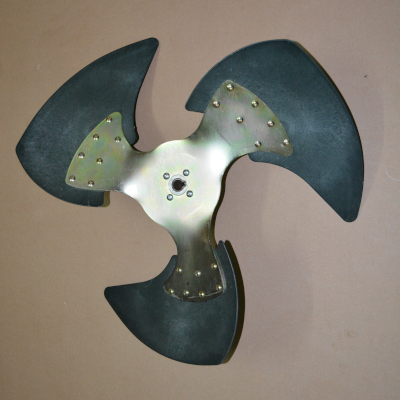

| FAN DIA / TYPE | 600MM / AXIAL - 3 LEAF |
| PAD SIZE | L-760*H-670*D-100MM(790 SQ INCH) |
AIR MAX PORT 18
| AIR FLOW | 18000 CMH |
| KW / HP | 1.1/1.5 |
| MACHINE SIZE | 1.08*1.08*0.95 |
| VENT OPENING | 660MM*660MM |
| DISCHARGE | TOP |
| FAN DIA / TYPE | 600MM / AXIAL - 3 LEAF |
| PAD SIZE | L-760*H-670*D-100MM(790 SQ INCH) |
AIR MAX 22
| AIR FLOW | 22000 CMH |
| KW / HP | 1.5 / 2 |
| MACHINE SIZE | 1.08*1.08*0.95 |
| VENT OPENING | 660MM*660MM |
| DISCHARGE | TOP / DOWN |
| FAN DIA / TYPE | 600MM / AXIAL - 3 LEAF |
| PAD SIZE | L-760*H-670*D-100MM(790 SQ INCH) |
AIR MAX 30
| AIR FLOW | 30000 CMH |
| KW / HP | 3 / 4 |
| MACHINE SIZE | 1.3*1.3*1.18 |
| VENT OPENING | 790MM*790MM |
| DISCHARGE | TOP |
| FAN DIA / TYPE | 680MM / AXIAL - 4 LEAF |
| PAD SIZE | L-860*H-870*D-100MM(1160 SQ INCH) |
AIR MAX 20
| AIR FLOW | 20000 CMH |
| KW / HP | 1.1 / 1.5 |
| MACHINE SIZE | 1.15*1.15*0.950 |
| VENT OPENING | 655MM*655MM |
| DISCHARGE | TOP / DOWN |
| FAN DIA / TYPE | 600MM / AXIAL - 6 LEAF |
| PAD SIZE | L-830*H-630*D-100MM |
| SPEED | VARIABLE |
| TYPE | AUTOMATIC RH CONTROLLER, TIMER & WATER DRAIN |
NOZZLES
The Air Max Cooler is an arrangement of special atomizing fog nozzles located along a network of specially

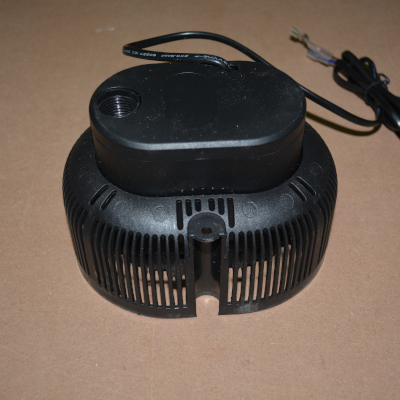

designed and fabricated copper tubing fog line. Utilising a specially designed fog pump module, which
provides extremely high water pressure, the atomizing nozzles convert water into billions of aerosol sized
water particles capable of achieving the highest levels of evaporative efficiency possible. Controlled by
a multitude of electronic methods and a central computerized control module or a simple on/off switch
using Air Max Cooler you can save the electricity cost by up to 90%. Our experience technical staff will
gladly guide you through the process of design, purchase and installation of a system for your particular
application, be it Commercial, industrial and residential.
